### Leveraging Microservices architecture:<br /> Lessons learnt from the Winventory system development
[Sebastian Bukowiec](mailto:sebastian.bukowiec@cern.ch) & [Pawel Gomulak](mailto:pawel.gomulak@cern.ch )<br />**IT-CDA**
---
## Objectives
* <b style="color:dodgerblue;">Introduce Winventory</b><br />(tool used in the context of MAlt)
* Challenge: phasing-out of Windows servers across CERN
* Understand how Windows servers are used in the organization
* <b style="color:dodgerblue;">Share experience</b> about using Microservices architecture
---
## What is Winventory?
Winventory (https://cern.ch/winventory) is a tool develop at CERN with two objectives
---

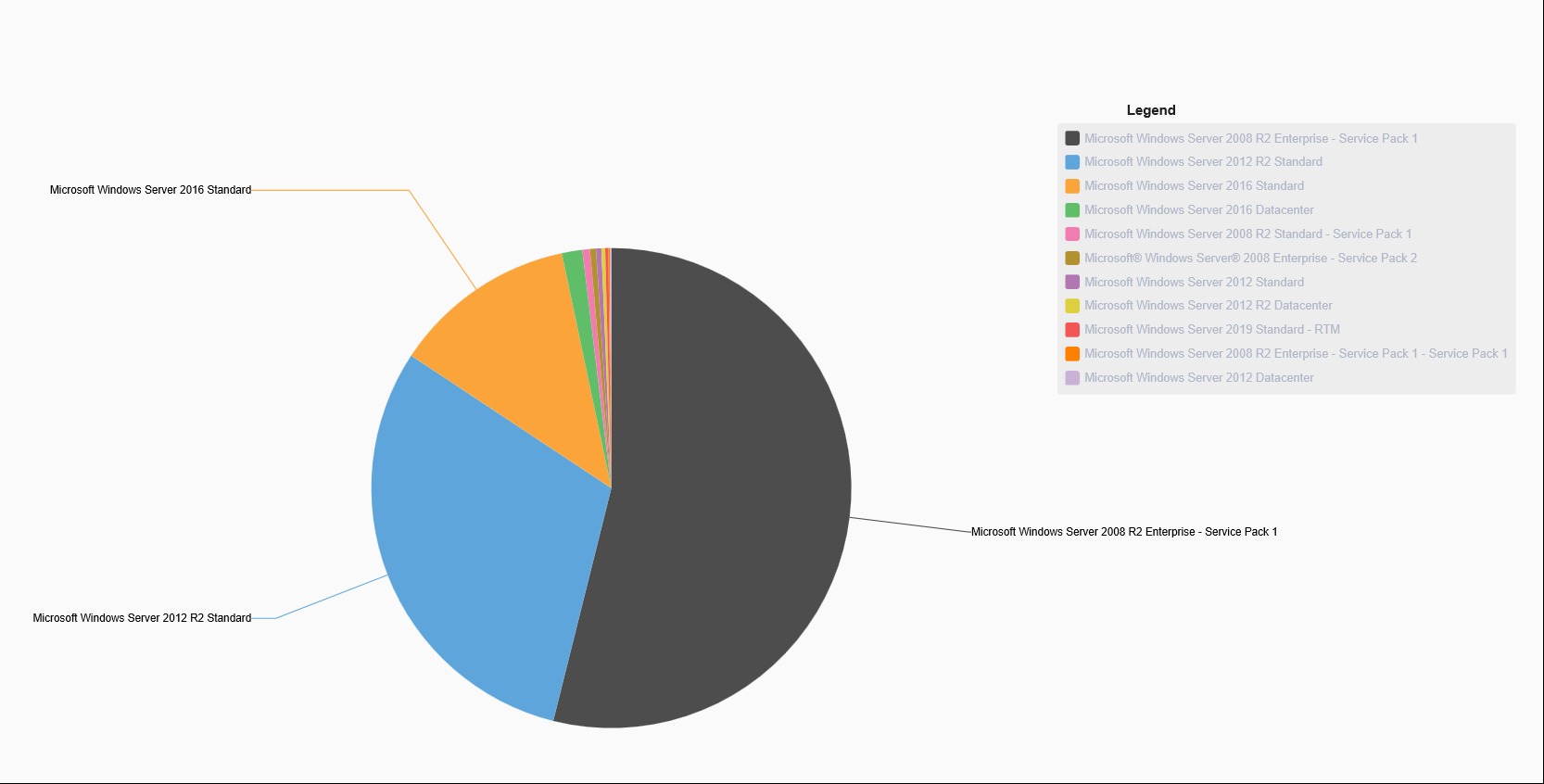

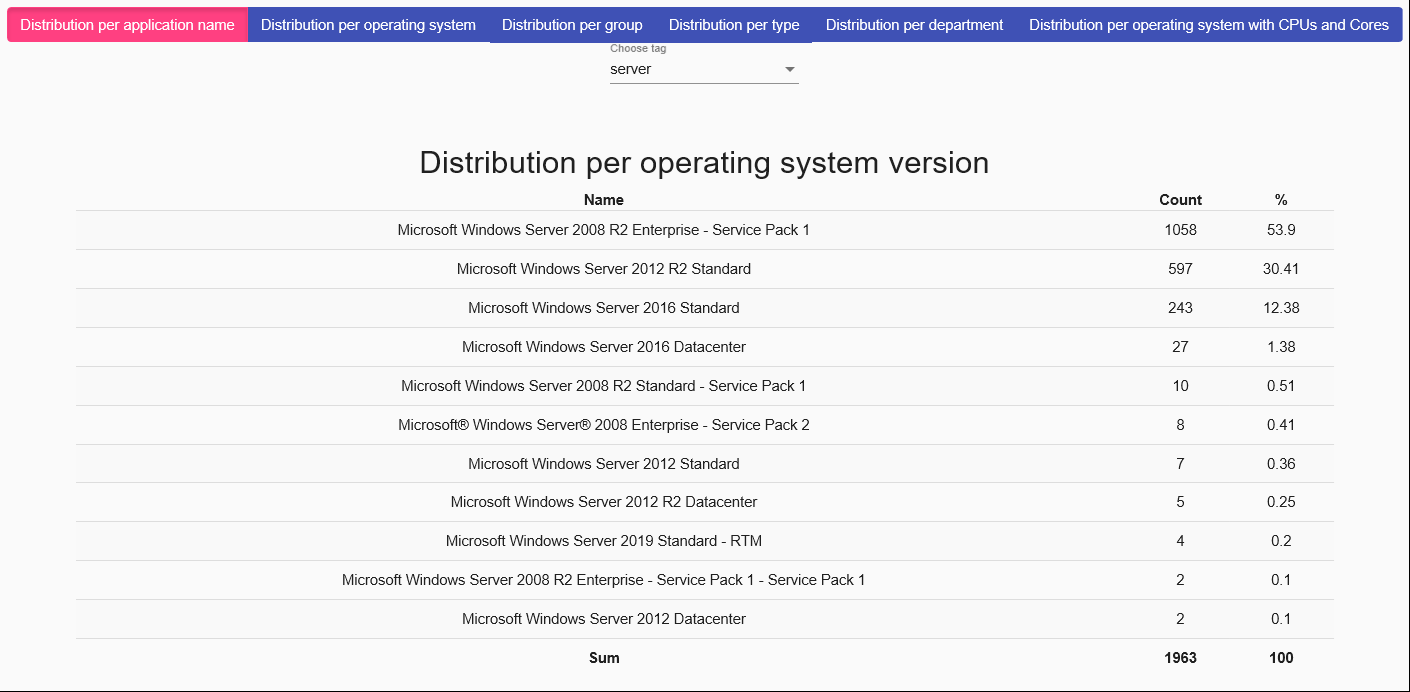

1. To gather and present statistics of software assets installed on CERN Windows machines
![](https://codimd.web.cern.ch/uploads/upload_da01dae6c303218c3768aa94e0ad4d2b.png)
---
![](https://codimd.web.cern.ch/uploads/upload_c7a4a12dc5f0288343988c007c9c963a.png)
---
2. To <b style="color:dodgerblue;">facilitate interaction</b> with individual users
```graphviz
digraph hierarchy {
nodesep=1.0 // increases the separation between nodes
node [fontname=Courier,shape=plaintext]
edge [color=dodgerblue, style=dashed]
user->{website }
user->{notification}->{website}
}
```
---
```graphviz
digraph hierarchy {
nodesep=1.0 // increases the separation between nodes
node [fontname=Courier,shape=plaintext]
edge [color=dodgerblue, style=dashed]
"delete unused assets" [xlabel = "actions"];
website [xlabel = "feedback"];
user->{website}->{"delete unused assets", "remove licenses", "buy licenses"}
}
```
---
## Why Winventory?
* To <b style="color:dodgerblue;">match</b> user feedback with information about software assets
* To have <b style="color:dodgerblue;">flexibility</b> in combining many data sources
---
## Goals of Winventory

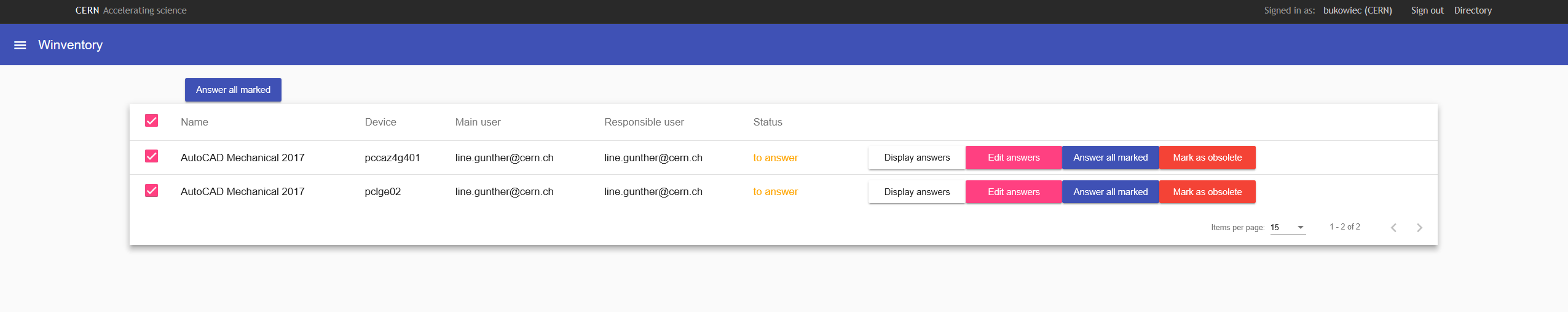

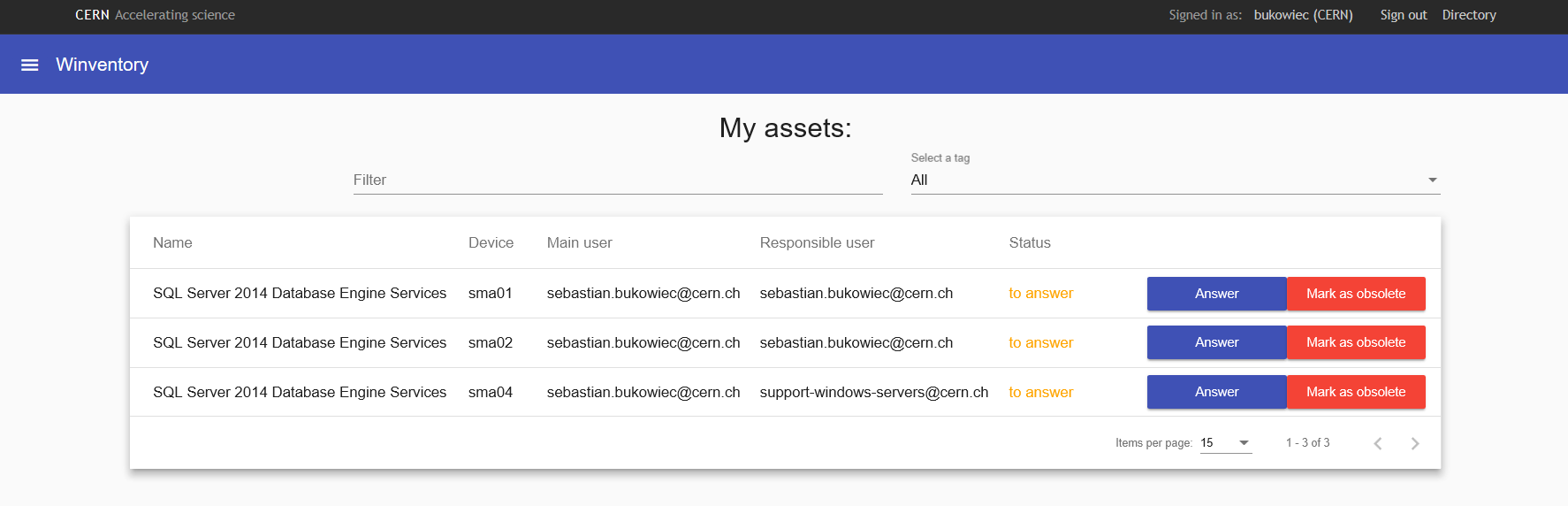

* Easy and <b style="color:dodgerblue;">encouraging</b> tool to collect user feedback
![](https://codimd.web.cern.ch/uploads/upload_8d9e4b3de014522a1cb3c16217c753c5.png)
---
* Effective (repeated notifications)
* Automated
* Friendly
* consolidated queries and answers
![](https://codimd.web.cern.ch/uploads/upload_4a4f3599a40bb6b02379f45ea55992f8.png)
---
## Initial phase
Two use cases for the infrastructure:
* Windows Servers
* MS SQL Servers
---
## Requirements expansion

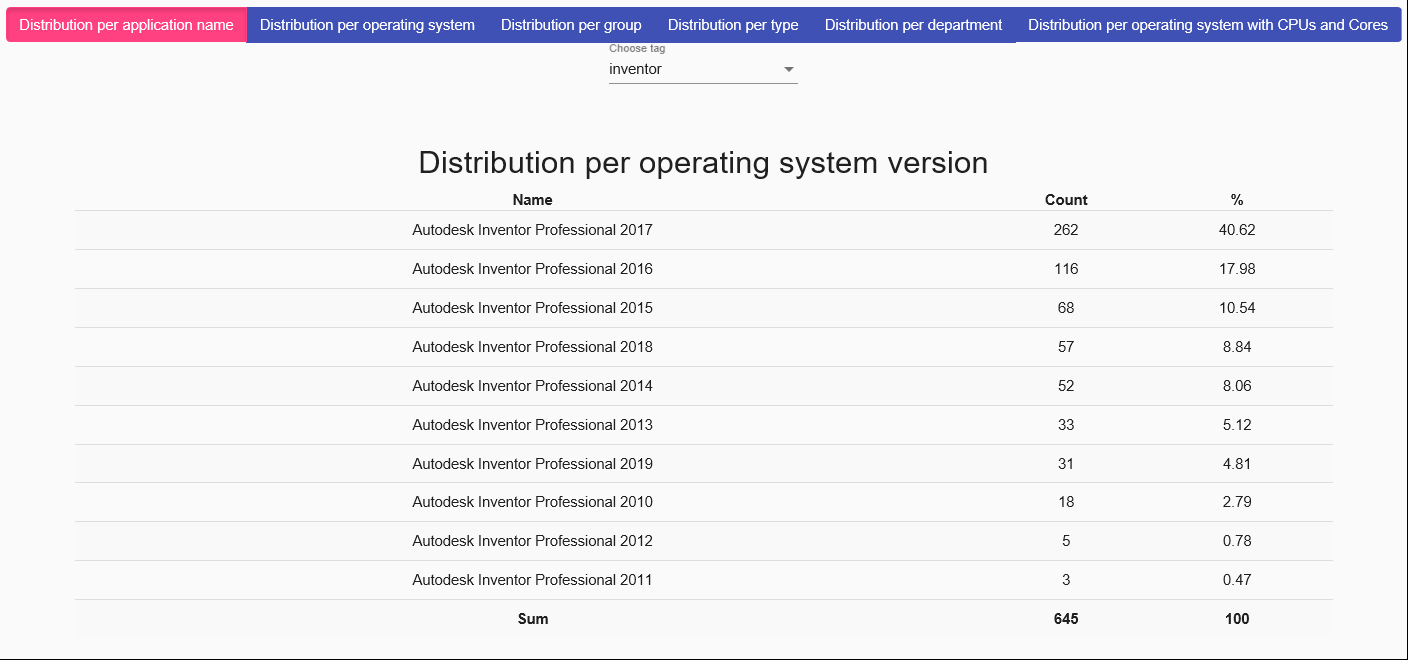

* Add Engineering applications
![](https://codimd.web.cern.ch/uploads/upload_d243587cb69e8566dfa2b2f3f84bf7ce.png)
---

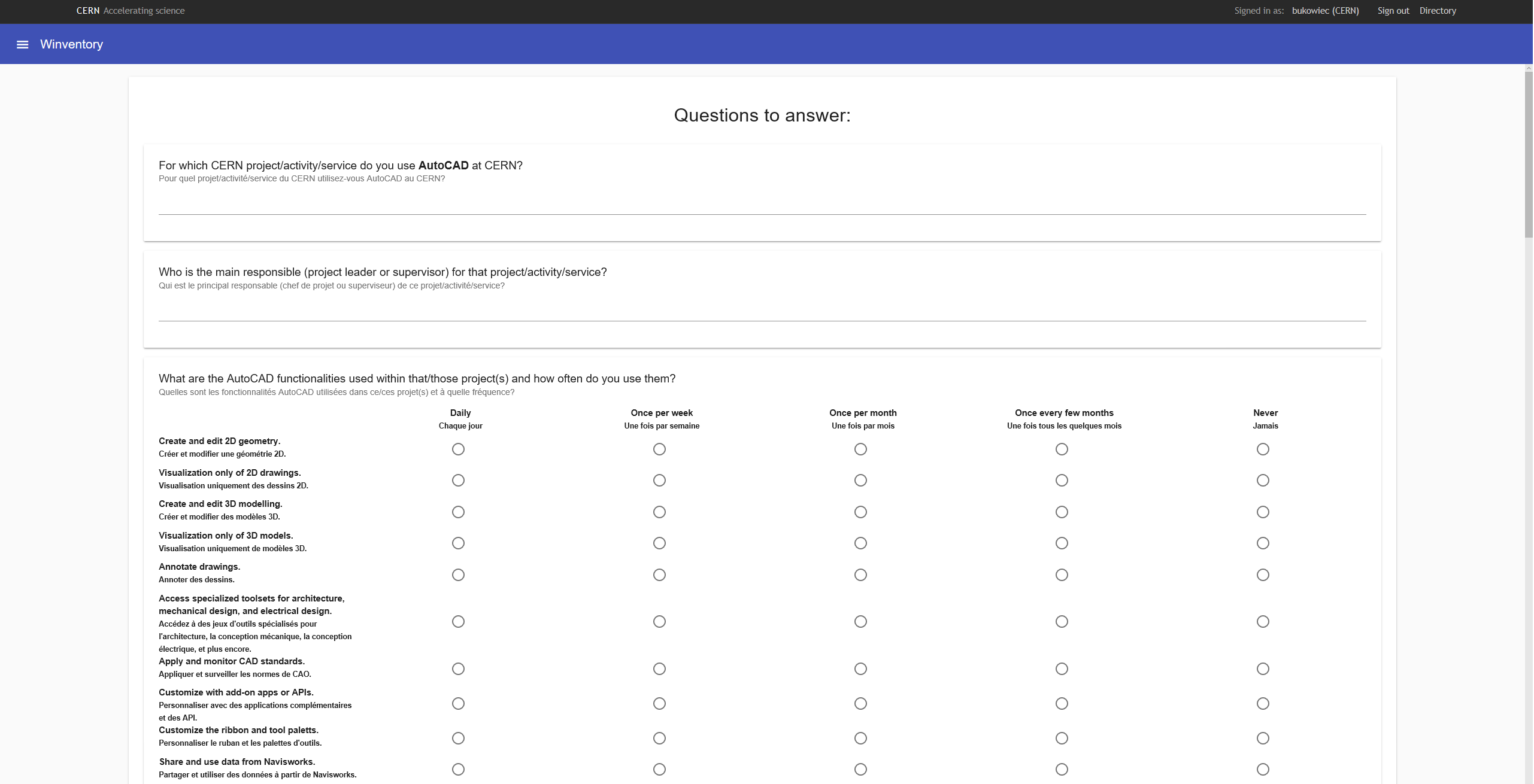

* New functionality - survey
* simple questions
* multiple choice questions
* matrix questions
---
![](https://codimd.web.cern.ch/uploads/upload_e1fec03350a751865107ac92e032403d.png)
---
## Autodesk survey
![](https://codimd.web.cern.ch/uploads/upload_5947af88621e621f2478d949733570d2.png)
---
## Winventory roles
* Guest
* User
* Administrator
---
## Data producer
Winventory currently has one data producer - <b style="color:dodgerblue;">Computer Management Framework (CMF)</b>, <br/>a custom software installed on every Windows machine that is member of the CERN domain.<br />
<b style="color:dodgerblue;">Data are collected once a day. Only data not older than three months is considered.</b><br />Missing data like Responsible and Main User are fetched from network db.
---
## Software architectures
<b style="color:dodgerblue;">Monolithic</b> vs <b style="color:dodgerblue;">Microservices</b>
---
## Monolithic Architecture
| Pros | Cons |
| -------- | -------- |
| Simplicity, for small codebases | Complex for large codebases |
| Faster early development speed | Slower iterations in the long term |
| Easy testing | Harder to innovate | |
| | Steep code learning curve |
---
## Microservices Architecture
The microservice architectural style is an approach to developing a <b style="color:dodgerblue;">single application as a suite of small services</b>, each running in its own process and <b style="color:dodgerblue;">communicating</b> with lightweight mechanisms, often an HTTP resource API. These services are <b style="color:dodgerblue;">built around business capabilities</b> and <b style="color:dodgerblue;">independently deployable</b> by <b style="color:dodgerblue;">fully automated deployment</b> machinery.
-Martin Fowler
---
## Microservices characteristics
<img src="https://codimd.web.cern.ch/uploads/upload_1fe1fe84366d058881fa72d6a9f0d581.png" class="plain">
---
### Business Domain Centric
Decouple microservices based on business capabilities or subdomain. Focus on <b style="color:dodgerblue;">what</b> it does.
* Identity Service
* Polls
* Notifications
---
### High Cohesion
* Identify <b style="color:dodgerblue;">single purpose</b> / function of the service
* Clear input and outputs
---
### Loose Coupling
* Independent services
* Each microservice owns its database
* No other service is allowed to connect to the DB
* Other services use only the service interface
* Communication over the network
* synchronous
* asynchronous
---
## Technology Stack
* <b style="color:dodgerblue;">ASP .NET Core 2.2</b> (C# web framework)
* [open source](https://github.com/dotnet/core)
* cross-platform (macOS, Linux, Windows)
* fast release cycle
* high performance
---

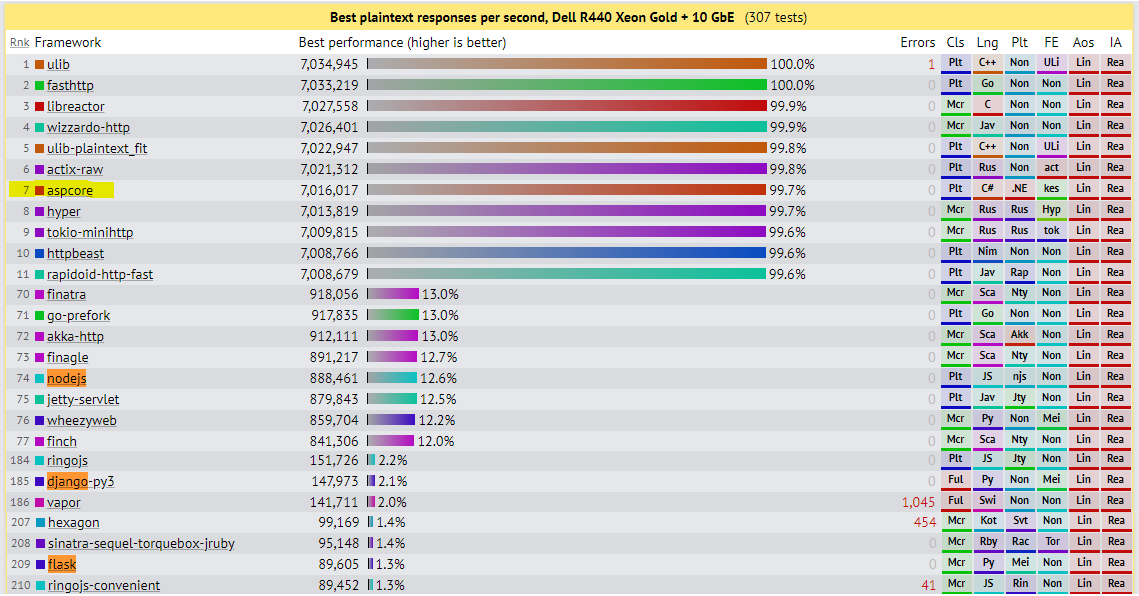

* <b style="color:dodgerblue;">Polly</b> (.NET resilience and transient-fault-handling library)
* <b style="color:dodgerblue;">SignalR</b> (library for `ASP.NET` to add real-time web functionality)
---
![](https://codimd.web.cern.ch/uploads/upload_c416f22d51755d9b4c2605f98c3c5923.png)
Source: [techempower.com](https://www.techempower.com/benchmarks/#section=data-r17&hw=ph&test=plaintext)
---
* <b style="color:dodgerblue;">Flask</b> (Python web framework)
* [open source](https://github.com/pallets/flask)
* highly customisable
* minimalistic
* <b style="color:dodgerblue;">Celery</b> (asynchronous task queue)
* <b style="color:dodgerblue;">SQLAlchemy</b> (Python SQL toolkit and Object Relational Mapper)
---
* <b style="color:dodgerblue;">Angular 7</b> (frontend)
* <b style="color:dodgerblue;">RabbitMQ</b> (message broker)
* <b style="color:dodgerblue;">Redis</b> (in-memory data structure store, cache)
* <b style="color:dodgerblue;">MySQL</b> (CERN DBoD)
* <b style="color:dodgerblue;">Docker</b>
* <b style="color:dodgerblue;">Openshift</b>
---
# Winventory Architecture
---
<img src="https://codimd.web.cern.ch/uploads/upload_76316708140380d361bf6598c4005eb5.png" class="plain">
---
# Frontend
---
## Technology Stack
* <b style="color:dodgerblue;">Angular 7</b>
- Full-fledged, open source frontend framework
- Many useful features "out-of-the-box", e.g.
- <b style="color:dodgerblue;">lazy-loading </b>
- http interceptors
- XSS protection
- dependency injection
- routing & forms
- TypeScript
* <b style="color:dodgerblue;">Angular Material </b>(material design)
---
# Backend
---
## Technology Stack

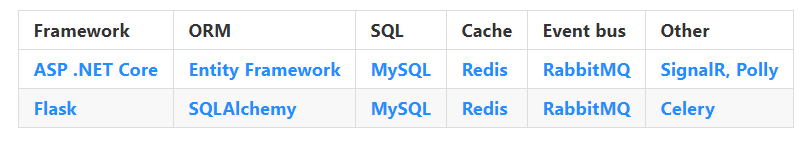

* Frameworks comparison
![](https://codimd.web.cern.ch/uploads/upload_57bcf26e28c139df5da368130207988d.png)
---
## Microservice Patterns
---
### Decomposition strategies
* Each microservice has its own database
- facilitates loose coupling
- no blocking by the other service
- independent development
* In avoid to unnecessary traffic, some data are replicated across different microservices
<i>ISSUE: how to divide complex domain into smaller ones? </i>
* By businnes capability?
* By subdomain? (based on DDD)
---
<i>ISSUE: how to divide complex domain into smaller ones? </i>
#### Challenges of:
* Network latency
* Data consistency
* Reduced availability due to synchronous communication
<img src="https://codimd.web.cern.ch/uploads/upload_bad6e30cd34cfc0797269f29c7fca78c.png" class="plain" width=75%>
---
### Communication with frontend
<i>ISSUE: Which pattern of communication with frontend layer to use? </i>
* Two patterns possible
- gateway
- direct
---
####
<i>ISSUE: Which pattern of communication with frontend layer to use? </i>
<img src="https://codimd.web.cern.ch/uploads/upload_9bc00446819bdfd5cd26af228050be63.png" class="plain" width=75%>
<small> Source: docs.microsoft.com </small>
---
####
<i>ISSUE: Which pattern of communication with frontend layer to use? </i>
<img src="https://codimd.web.cern.ch/uploads/upload_ba85aadd8feee763308918f3dc491638.png" class="plain" width=75%>
<small> Source: docs.microsoft.com </small>
---
<i>ISSUE: Which pattern of communication with frontend layer to use? </i>

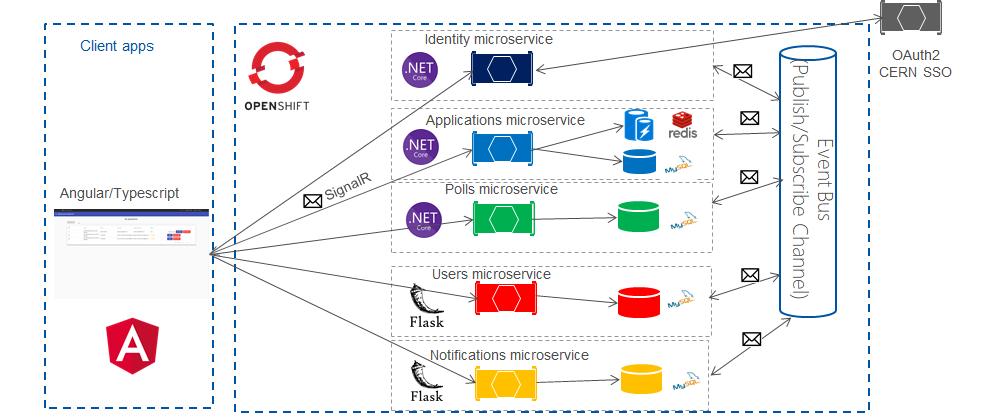

* We decided to use direct - no other clients than SPA, no complex aggregation logic
![](https://codimd.web.cern.ch/uploads/upload_f7a37c1b7c8abcb9dcf481edb2e1b0e9.png)
---
### Microservices communication patterns
<i>ISSUE: Which communication pattern to use across microservices? </i>
---
<i>ISSUE: Which communication pattern use across microservices? </i>
<img src="https://codimd.web.cern.ch/uploads/upload_8d6acd96d0d3637c946265b34a6881ec.png" class="plain" width=75%>
<small>source: docs.microsoft.com</small>
---
### Asynchronuous communication
*ISSUE: Which asynchronuous communication choose?*
* Many to choose from
* CQRS (Command Query Responsibility Segregation)
* event-sourcing
* event-notifications
* Broker or brokerless?
---
### Asynchronuous communication
*ISSUE: Which asynchronuous communication choose?*
* We decided for event-notification (simplicity)
* RabbitMQ as message broker
* Propagates changes of data to different microservcices
<img src="https://codimd.web.cern.ch/uploads/upload_0272b3bf53cd8ae92879e19e55e19880.png" class="plain" width=60%>
---
### Synchronuous communication - circuit breaker pattern
* REST API used
- stateless (easy to scale)
- level 2 of maturity model
* Resiliancy and fault-tolerance implemented with Polly library (analogic to Netflix Hystrix)
<img src="https://codimd.web.cern.ch/uploads/upload_6832c8ed0e4232e3c5bb5913ce9dc157.png" class="plain" width=40%>
---

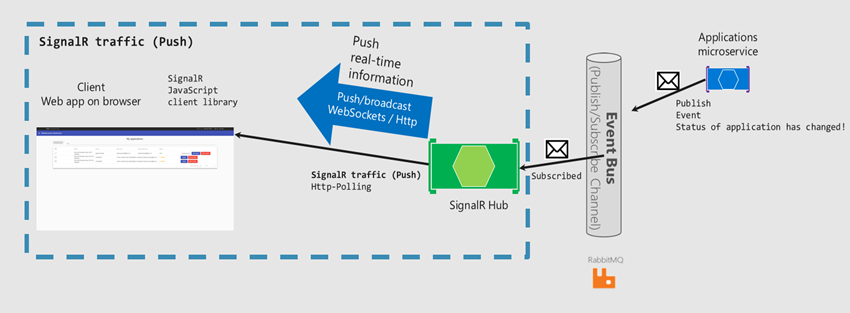

### Push notifications
* Used for updating frontend in real time
* No page reaload
* Hub implemented with SignalR
* RabbitMQ as message broker
![](https://codimd.web.cern.ch/uploads/upload_a2026a380883da8a282bcbeefc39f4d8.png)
---
### Continoues Deployment
<i>ISSUE: How to provide convenient and effortless software delivery? </i>
---
## Environments
* Dev (docker-compose)
- each microservice has its dockerfile
- docker compose builds whole project
- easy and quick start for new developers
* Staging (Openshift)
* Production (Openshift) (zero-downtime deployments)
---
## Openshift
- Many features like monitoring and routing provided "out-of-the-box"
- Pipeline:
1. Commit to repo
2. Build docker image
3. Push image to Gitlab registry
4. Deploy to Opensifht
---
### Health monitoring & Logging
* Facilitates self-healing
* Response on failure
* Track performance issues
* More difficult to implement than in monolithic systems
---

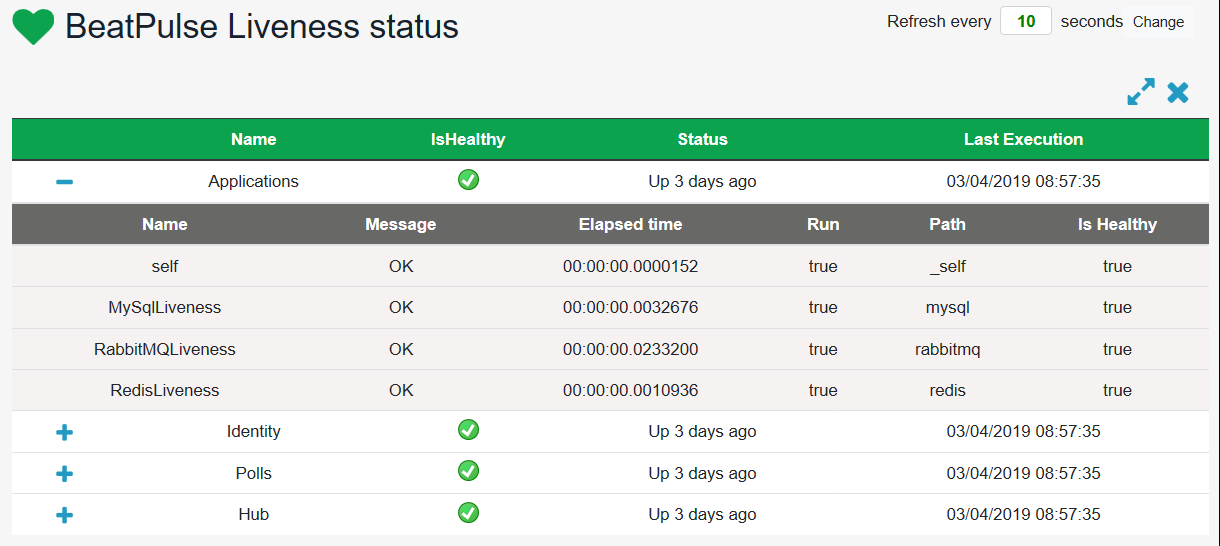

## Web status service
* Health checks out of the box in .Net Core
* Real-time status available failure to Mattermost </i>
![](https://codimd.web.cern.ch/uploads/upload_1ad02f0ecb5d25bebc7f69b2814f9348.png)
---

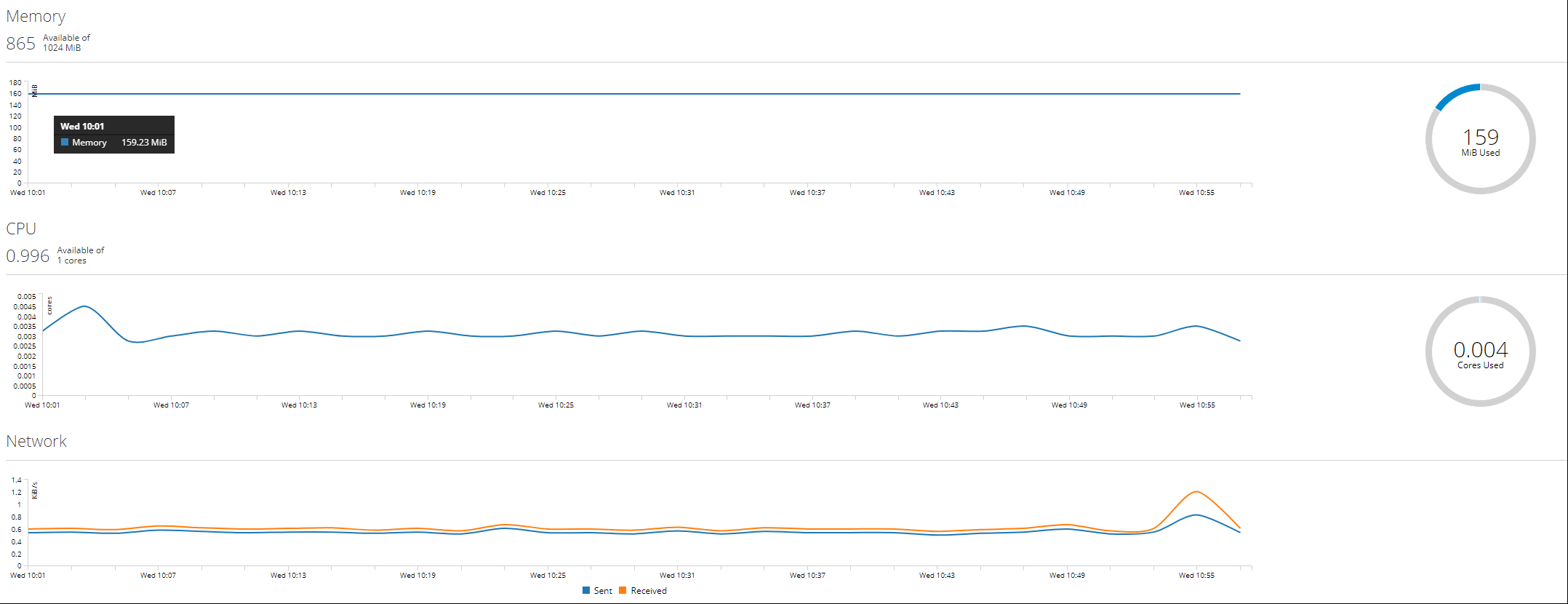

## Openshift monitoring
* CPU, memory and network metrics
* <i>TODO Prometheus logging </i>
![](https://codimd.web.cern.ch/uploads/upload_bd894945180199a44bab9558c8d4abd3.png)
---

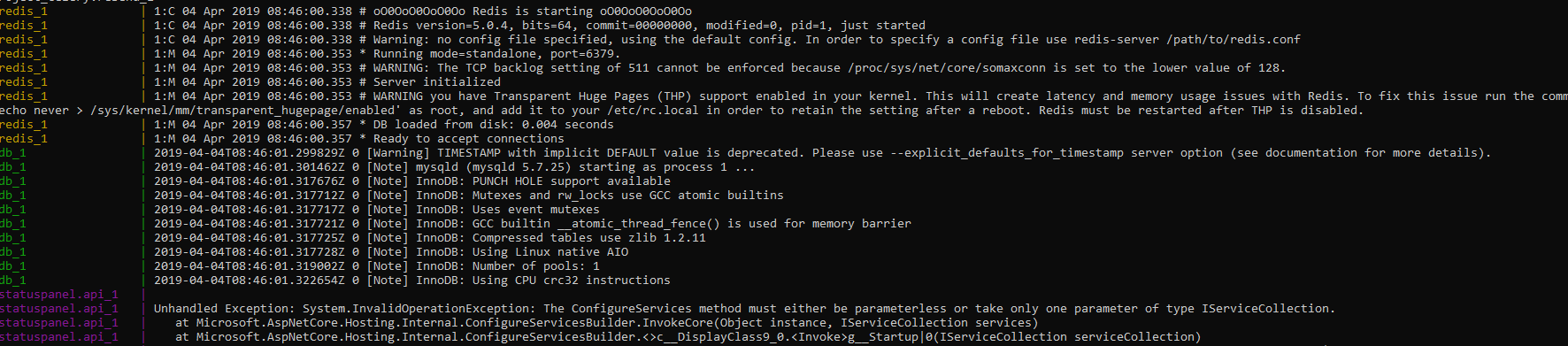

## Logging
* Each service logs the actions and errors
* <i>TODO central logs flow to Elasticsearch </i>
![](https://codimd.web.cern.ch/uploads/upload_8b0574156feefbc4aa2d2172aff7af1a.png)
---

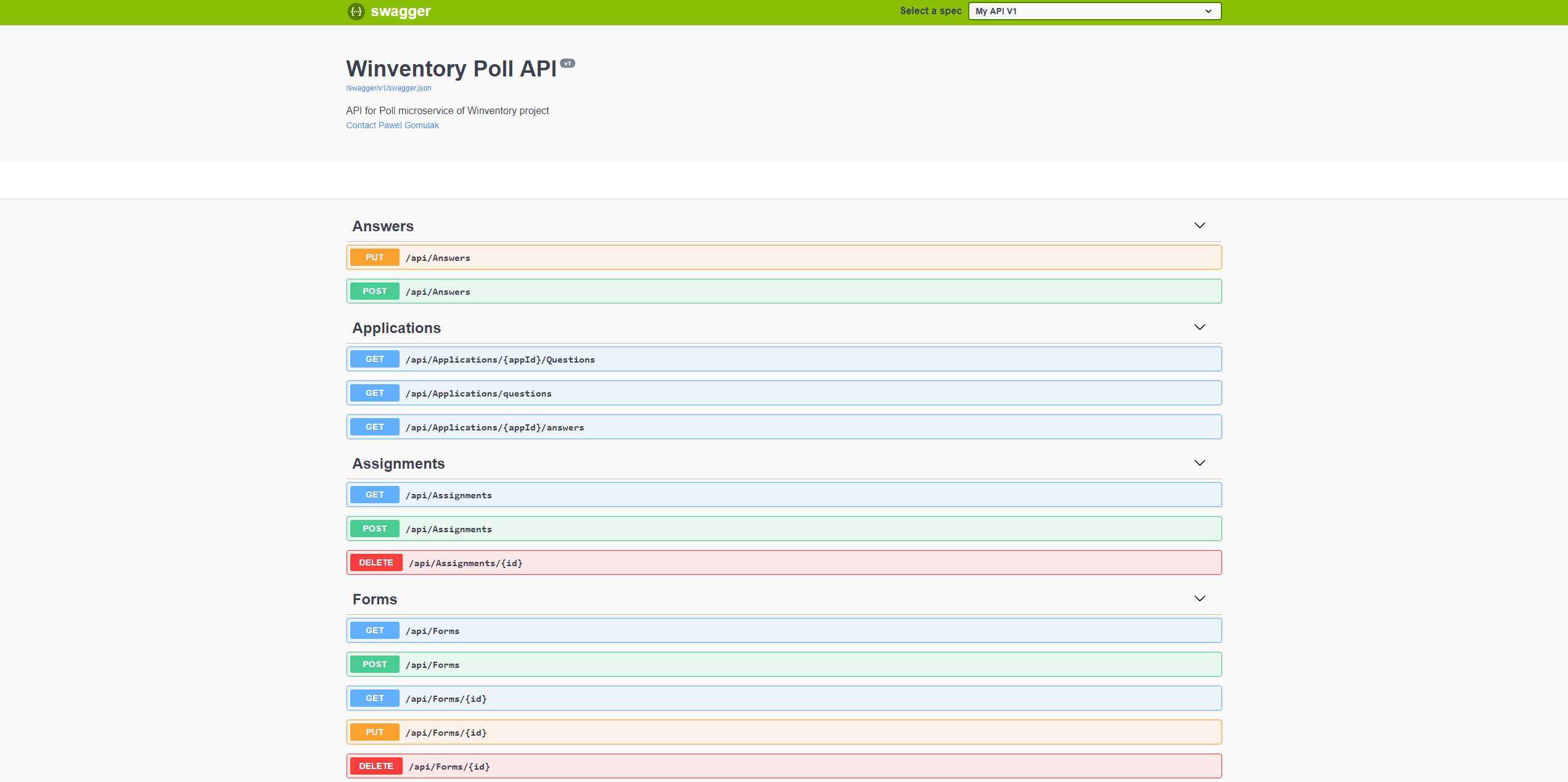

### Documentation - Swagger
* self-generation of API documentation
![](https://codimd.web.cern.ch/uploads/upload_28afd91702080a020706dbf8b7d26709.png)
---
# Demo
---
# Lessons learned
* Continuous integration and delivery is very important
* Mono repository can be better in some cases
* For simple and small applications, monolithic architecutre patterns can be better
* Microservices are more challenging when there is one developer
---

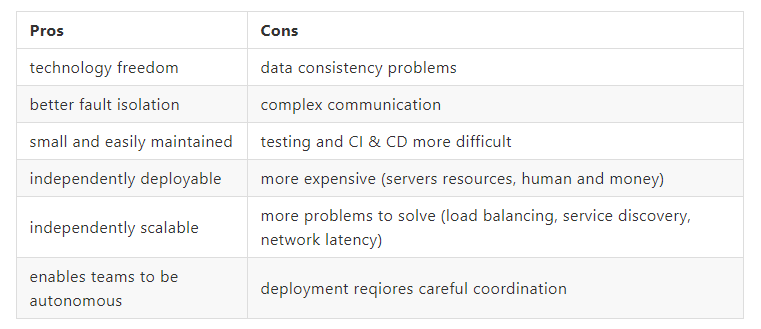

### Advantages and disavantages of microservice architecture
![](https://codimd.web.cern.ch/uploads/upload_ef54b70623aa8622be9731132052bb72.png)
---
## Conclusions
* Overall "test" of microservices architecture successful
* Technology freedom
* Easier to innovate
* Higher initial cost vs monolthic apps
* Distributed systems increase complexity
---
## Thank you for your attention
If you own a Windows server machine soon you will be contacted!
---
